Export Model in Avmount Machine Mounts: Type AMM

Our export model is the Avmount Machine Mounts: Type AMM. Like all other models this model too helps to make the environment free from inherent and external vibrations. Besides, the mounts also consist of oil and age resistant synthetic rubber. The compact mounts help in the optimal absorption of vibrations.

Technical Specifications of Export Model (Type AMM)


Type AMM


Avmount Machine Mounts
AMM-10
AMM-20
AMM-30
AMM-40
Diameter
80 mm
120 mm
160 mm
200 mm
Min. Height Above the Floor
38 mm
46 mm
53 mm
63 mm
Adjustable Level
38-50 mm
46-59 mm
53-68 mm
63-78 mm
Bolt Thread: Standard
M12 X 1.75
M16 X 2
M20 X 2.5
M20 X 2.5
Optional
-
M12 X 1.75
M16 X 2
M16 X 2
Bolt Length
100 mm
125 mm
150 mm
150 mm
Loading/Mount Machine Tool
50-500 kg
400-1000 kg
800-2000 kg
1500-4000 kg
Loading/Mount Power Presses
Max. Strokes/Min. 200
50-120 kg
100-250 kg
250-725 kg
500-1400 kg
160
60-140 kg
120-350 kg
350-1100 kg
750-2100 kg
Less than 125
70-200 kg
200-400 kg
400-1400 kg
1000-2800 kg

Mounting Procedure for Export Model (Type AMM)

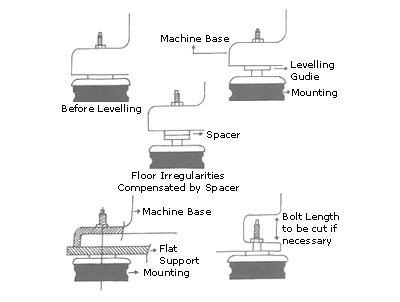

  1. Lift the machine above the floor.
  2. Screw down the bolts into their respective guides.
  3. Lower the machine so that it rests on the machine mounts.
  4. Level the machine using a precision spirit level as illustrated.
  5. Tighten the lock nut after levelling, to prevent any alterations in level while in operation.
  6. The adjustable height of our mounting is as follows:

      7. AMM 10 AMM 20
      38-50 mm 46-59 mm
      AMM 30 AMM 40
      53-68 mm 63-78 mm
  7. Should the levelling exceed this limit because of an uneven floor, then a spacer of appropriate diameter and thickness should be inserted between the machine base and the mount, to compensate for the difference in the floor level at any support point.
  8. In some machines, the design of the base is hollow and the bolt hole provided is such that the mounting cannot be directly fixed to the base. In such cases, the machine is made to rest on an adequate size of flats and the mountings placed under them. The rest of the procedure is the same as discussed.
  9. If the bolt lengths are more, the chamfered end may be cut to suit the machine. After cutting it to the required length, form a radius to suit the cup. This is necessary in the case of machine bases where pockets are provided.
