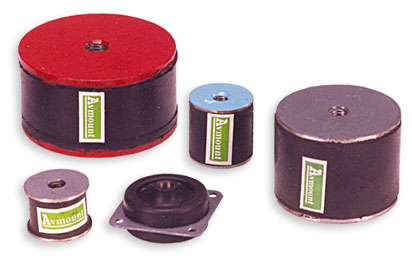

Avmount Vibration Isolators : Type AVD, A1T, A2T

Avmount Vibration Isolators are simple in design and easy to fit. Our mounts come in three different types of bolting configurations for the protection of electronic apparatuses and all sensitive equipment from vibration and shock. The rubber or metal bonding permits the mounting to be used either in compression, shear, or a combination of both.

These mounts can be manufactured in any required polymer and necessary stiffness to suit individual needs.


Type AVD



Type A1T



Type A2T


Applications of Mountings (Type AVD, A1T, A2T)

Dimensions of Mountings (Type AVD, A1T, A2T)


Type A1T



Type AVD



Type A2T


Type RECOMMENDED LOAD / MOUNTING OVER ALL DIMENSIONS IN MM
A1T  ; A2T ; AVD WITH DIFFERENT SHORE HARDNESS
    A  - 45°A B - 55°A C - 65°A A B C ± 1mm D E
10055 75 225 400 100 55 45 M16 X 2 OR M12 X 1.75 20
07555 40 120 220 75 55 36 12 X 1.75 13
05050 20 60 100 50 50 31 M10 X 1.5 11
05040 20 60 100 50 40 31 M10 X 1.5 11
05030 20 45 80 50 30 31 M10 X 1.5 11
04040 10 30 60 40 40 26 M10 X 1.5 8
03535 10 25 50 35 35 27 M8 X 1.25 8
03030 7 20 35 30 30 27 M8 X 1.25 8
02525 5 15 25 25 25 18 M6 X 1 6
02520 5 15 25 25 20 18 M6 X 1 6
02020 3 9 10 20 20 13 M6 X 1 6
01515 1.5 5 9 15 15 13 M4 X .8 5

Capacity: 2 kg to 400 kg per mounting.

Note:

  1. The graph of compressive static load Vs Deflection can be assumed as linear for computing intermediate values.
  2. For Shear loading values =1/3 of compressive load stated above.
  3. While ordering specify as eg. Type: AVD 05050 A. i.e. Type AVD Size 05050 with shore hardness A-45. First 3 digits of the mount type mentioned indicates the diameter of the mount, next two digits indicates the height of the mounts, i.e. Mount Type AVD 05050 wherein 050 is the diameter and 50 is the height. All dimensions are in mm.
  4. Due to the limitations in manufacturing of AVD, A1T the bolt may not be 100% perpendicular to the plate, there may be a slight deviation of max +- 2 degress.
  5. Shrinkage allowance +- 1.5mm
