Avmounts India: Product Type AV

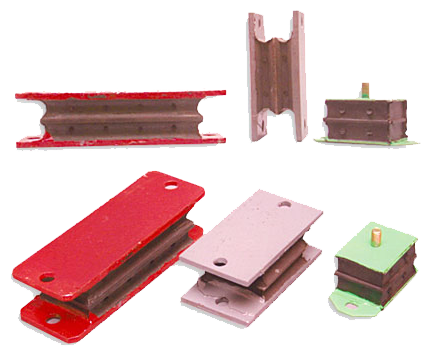

Sandwitch Mounts: AS - A Series, AS - B Series & AS - C Series

Avmounts Sandwich type vibration Isolators are of simple design and easy to fit. Designed with different physical dimensional specifications and rubber characteristics to suit a very wide range of application. Rubber to metal bonding permits the mounting to be used either in compression shear, or a combination of both.

The Sandwitch mounts can be used to replace the rubber sandwitch installed in your Cushy Foot series. They can be used as a spare/replacements for Cushy Foot.

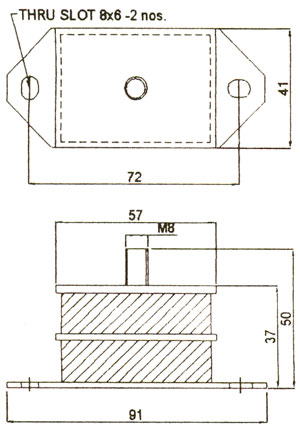

Sandwitch Mounts AS - A Series

AS - B Series & AS - C Series

Mount Type	Static Load	Static Deflection	Colour Code
	Kgs	in MM
AS - A0	440	4	GREEN
AS - A1	300	4	RED
AS - A2	200	4	GREY
AS - A3	140	4	BLUE
AS - A4	100	4	SILVER

Sandwitch Mounts AS - B Series

AS - B Series & AS - C Series

Physical Dimensions & Static Deflection against Rated Load

Mount Type	Dimension in MM						Static Load	Static Deflection	Colour Code
	A	B	H	d	C	W	Kgs	in MM
AS - B0	168.5	58	44	11.5	145.5	130	1800	3	GREEN
AS - B1							1200	3	RED
AS - B2							650	3	GREY
AS - B3							560	3	BLUE
AS - B4							420	3	SILVER

Sandwitch Mounts Type AS - C Series

Mount Type	Dimension in MM						Static Load	Static Deflection	Colour Code
	A	B	H	d	C	W	Kgs	in MM
AS - C0	110	60	42	10	89	65	850	3	GREEN
AS - C1							590	3	RED
AS - C2							400	3	GREY
AS - C3							300	3	BLUE
AS - C4							170	3	SILVER
