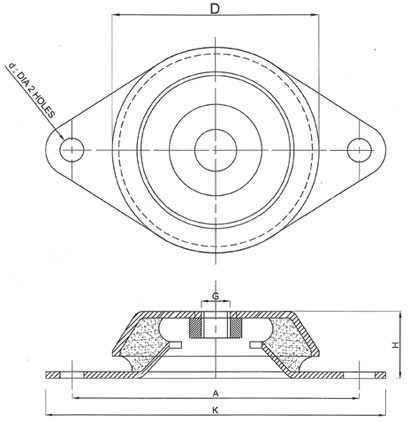

| VIBRO DAMPER | Cup Dia'D'
|
PCD Betw. 2 Holes 'A'
|
Base Length 'K'
|
Height 'H'
|
Dia 2 Holes 'd'
|
Tapping Size 'G'
|
| AVM 100 / 300 | 61.5 |
84 |
110 |
35 |
9 |
M12 |
| AVM 120 / 280 | 79 |
110 |
130 |
30 |
9 |
M10 |
| AVM 275 / 650 | 108 |
144 |
172 |
38 |
13.5 |
M16 |
| AVM 300 / 750 | 121 |
158 |
186 |
42 |
13.5 |
M16 |
| AVM 500 / 1500 | 142 |
182 |
212 |
48 |
13.5 |
M16 |
* All above mentioned dimensions are in mm
| VIBRO DAMPER | TYPE | MAX. LOAD "Kg." | DEFLECTION "mm." | PAINT / MARKS |
| AVM 100 / 300 | A |
100 |
2 |
Blue |
| AVM 100 / 300 | B |
150 |
2 |
Grey |
| AVM 100 / 300 | C |
200 |
2 |
Red |
| AVM 100 / 300 | D |
300 |
2 |
Green |
| AVM 120 / 280 | A |
120 |
2 |
Blue |
| AVM 120 / 280 | B |
150 |
2 |
Grey |
| AVM 120 / 280 | C |
180 |
2 |
Red |
| AVM 120 / 280 | D |
280 |
2 |
Green |
| AVM 275 / 650 | A |
275 |
4 |
Blue |
| AVM 275 / 650 | B |
375 |
4 |
Grey |
| AVM 275 / 650 | C |
450 |
4 |
Red |
| AVM 275 / 650 | D |
650 |
4 |
Green |
| AVM 300 / 750 | A |
300 |
4 |
Blue |
| AVM 300 / 750 | B |
400 |
4 |
Grey |
| AVM 300 / 750 | C |
600 |
4 |
Red |
| AVM 300 / 750 | D |
750 |
4 |
Green |
| AVM 500 / 1500 | A |
500 |
6 |
Blue |
| AVM 500 / 1500 | B |
700 |
6 |
Grey |
| AVM 500 / 1500 | C |
1200 |
6 |
Red |
| AVM 500 / 1500 | D |
1500 |
6 |
Green |
Installation of equipments on VIBRO DAMPERS is the modern method of installing equipment which must be protected from shock and vibrations which are inherent in many environments.
In mobile applications the equipments remains steady and isolated from the base vibrations during transit.
